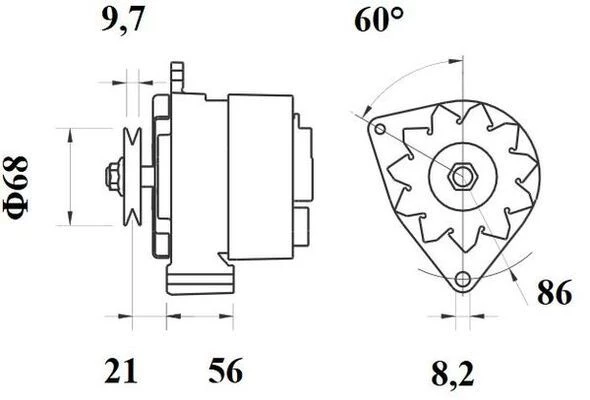

| Bore Ø (mm) | 8.2 |
| Mounting points diameter (mm) | 86.0 |
| Number of belts | 1 |
| Belt pulley Ø (mm) | 68 |
| Pulleys | with belt pulley |
| Distance from belt pulley to alternator (mm) | 21.5 |
| Dust cover | with dust cover |
| Distance of mounting bores (mm) | 56.0 |
| Connector/clamp | w |
| Packaging height (cm) | 15.50 |
| Packaging width (cm) | 17.60 |
| Packaging length (cm) | 20.8 |
| Alternator charging current (A) | 33 |
| Rotation direction | clockwise rotation |
| Number of ribs | 1 |
| Voltage (V) | 14 |
| Net weight (g) | 3640 |
Expresslevering
| Manufacturer | Model | Version | Engine code | Construction type | Construction start | Construction end | Pk | Power kw |
| DEUTZ-FAHR | ||||||||
| FENDT | ||||||||
| INTERNATIONAL HARV. |
| Manufacturer | Productnumber |
| RENAULT | 60 00 100 325 , 6000100325 |
| RENAULT | 60 00 130 300 , 6000130300 |
| RENAULT | 60 05 003 146 , 6005003146 |
| RENAULT | 60 05 003 149 , 6005003149 |
| RENAULT | 60 05 003 763 , 6005003763 |
| RENAULT | 60 05 700 084 , 6005700084 |
| RENAULT | 77 00 004 148 , 7700004148 |
| RENAULT | 77 00 012 723 , 7700012723 |
| RENAULT | 77 00 665 435 , 7700665435 |
| IVECO | 1177481 |
| IVECO | 42522730 |
| JOHN DEERE | AZ23575 |
| DEUTZ | 0116 3985 , 01163985 |
| DEUTZ | 0117 1617 , 01171617 |
| DEUTZ | 0117 7481 , 01177481 |
| DEUTZ | 1163985 |
| DEUTZ | 1171617 |
| DEUTZ | 1177481 |
| DEUTZ | 930310710026 |
| CLAAS | 6005700084 |
| CLAAS | CT6005700084 |
| FENDT | X 830 060 003 000 , X830060003000 |
| FENDT | X 830 060 011 , X830060011 |
| CASE IH | 3218239EX |
| CASE IH | 3218239R91 |
| MWM | 6 0571 01 0 0109 , 605710100109 |
| MWM | 6 0571 01 0 0136 , 605710100136 |
| O&K | 936281 |
| SAME | 0.902.0028.0 , 090200280 |
| AGCO | C830060011000 |
| Usage numbers |
| 11201096 |
| 11209463 |
| 72514485 |
| AAG1364 |
| MG 124 |
| 72735123 |
| 3 |
| 83892E+12 |

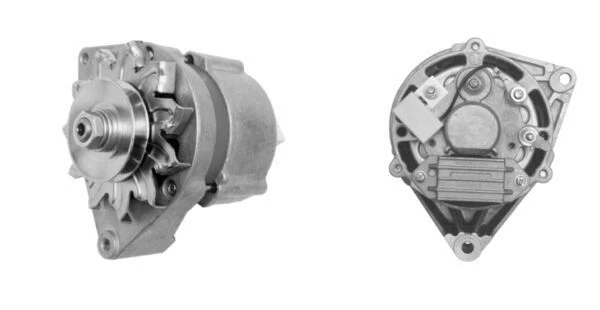

The Alternator (MG 124) generates electrical power and recharges the vehicle battery. Installing a Porza-quality alternator restores stable charging and full electrical system reliability.
An alternator is an electrical component that generates power for the vehicle while the engine is running. Its function is to supply electricity to the vehicle’s electrical systems and recharge the battery.
Key specifications include voltage, amperage output, pulley type, mounting design, connector type, and compatibility with the vehicle. It must provide sufficient electrical power for all systems.
Replacement is necessary when the alternator fails or performs poorly. Common symptoms include a warning light, dim lights, battery not charging, electrical issues, or unusual noises.
Porza offers a fit guarantee option where your vehicle details are checked against product specifications to ensure correct compatibility.
Porza provides high-quality electrical components with fast delivery across Europe and options for online ordering or in-store pickup.
